I-DA-H

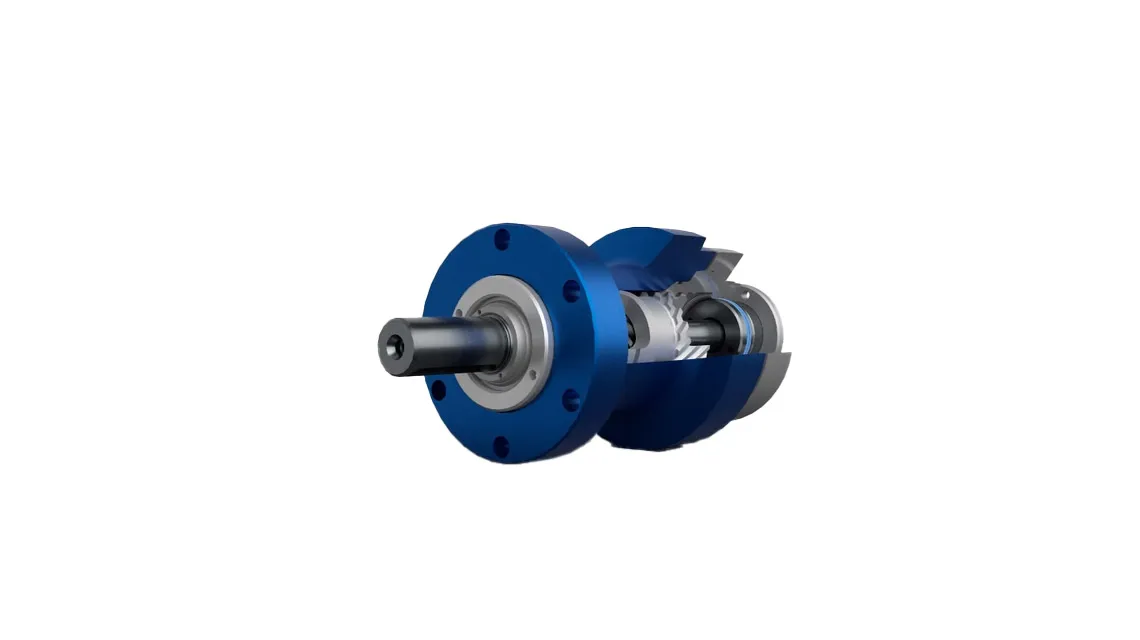

I-DA-H – roterande ställdon för industrimaskiner
Specifikation för I-DA-H:
| Working Pressure |
up to 250 bar |
| Torque |
up to 250.000 Nm |
| Angle of Rotation |
up to 1.080° |
| Special Angle of Rotation |
up to 1.500° |
| All sliding surfaces are surface-hardened |
| Rotary pistons can be run to their end stop positions and loaded |
| Rotation angle or end stop query possible via standard camshaft |
| Improved bearing efficiency with four-point bearing |
| Any intermediate rotation angle possible |
| Angular adjustment as standard |
| Improved end position cushioning (as standard) |
| State-of-the-art sealing technology |
| Stepless adjustment of the shaft position |
Produktbroschyr för I-DA-H:
