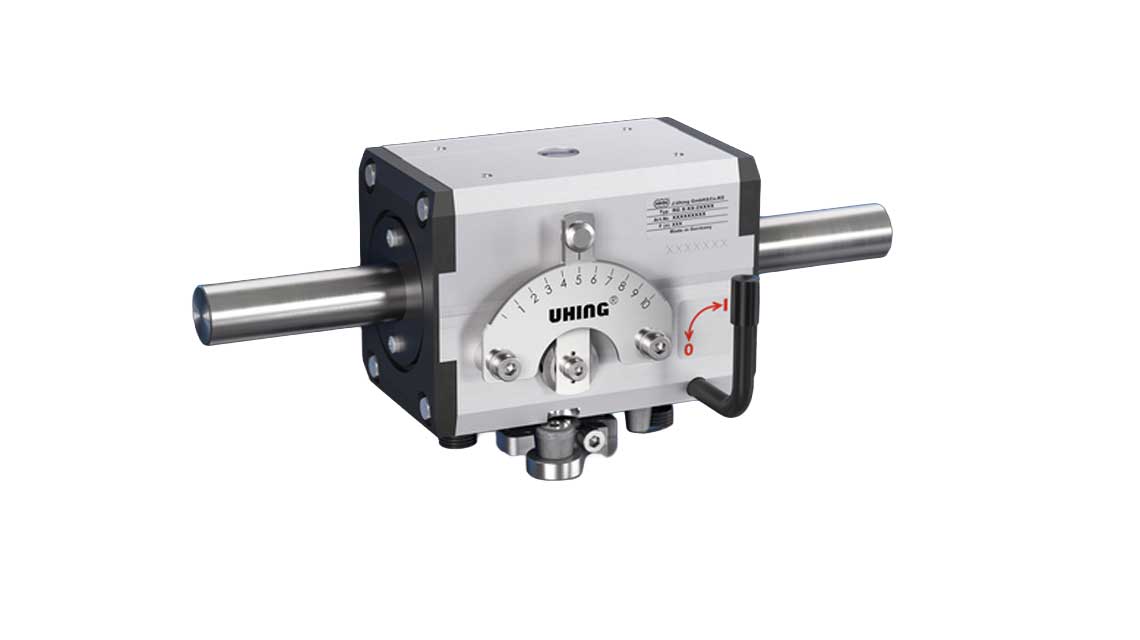

UHING® Rolling Ring Drive (RG)

Rolling Ring Drives from our supplier Uhing are friction drives that convert the constant rotary motion of a smooth shaft into a reciprocating linear motion. They act practically like nuts on screw spindles.



Produktspecifikationer:

  • maximum efficiency due to complete rolling bearing support of gearbox and payload
  • automatic back and forth movement
  • variably adjustable speed of travel from 0 to max. 4.2 m/s
  • variably adjustable stroke length and stroke position
  • high dynamics at the reversal point
  • can be disengaged from the shaft
  • low operating costs
  • low maintenance requirements
  • Alternative to ball screw, timed belt drive, etc.



Type designation Shaft Ø [mm] Side thrust FRS [N] max. speed v [m/s] Pitch/rev. [mm]
KI3L-15-6MCR
KI3R-15-6MCR		 15 30 0.3 6
RGK3-15-0MCRF 15 90 0.3 8
RG3L-15-2MCRF
RG3R-15-2MCRF		 15 110 0.3 11.1
RG4L-15-2MCRF
RG4R-15-2MCRF		 15 220 0.3 11.1
RGK3-20-1MCRF 20 130 0.3 12
RG3L-20-2MCRF
RG3R-20-2MCRF		 20 160 0.3 15.5
RG4L-20-2MCRF
RG4R-20-2MCRF		 20 320 0.3 15.5
RGK3-22-1MCRF 22 130 0.3 13
RG3L-22-2MCRF
RG3R-22-2MCRF		 22 160 0.3 16.5
RG4L-22-2MCRF
RG4R-22-2MCRF		 22 320 0.3 16.5
RG3L-30-2MCRF
RG3R-30-2MCRF		 30 260 0.4 24
RG4L-30-2MCRF
RG4R-30-2MCRF		 30 520 0.4 24
RG3L-40-2MCRF
RG3R-40-2MCRF		 40 420 0.4 32
RG4L-40-2MCRF
RG4R-40-2MCRF		 40 840 0.4 32
RG3L-50-0MCR
RG3R-50-0MCR		 50 700 0.25 40
RG4L-50-0MCR
RG4R-50-0MCR		 50 1400 0.25 40
RG3L-60-0MCR
RG3R-60-0MCR		 60 1000 0.25 48
RG4L-60-0MCR
RG4R-60-0MCR		 60 2000 0.25 48
RG3L-80-0MCR
RG3R-80-0MCR		 80 1800 0.25 70
RG4L-80-0MCR
RG4R-80-0MCR		 80 3600 0.25 70
